DS-2CD1067G2H-LIU 4mm

DS-2CD1067G2H-LIU 4mm

₨ 4,500

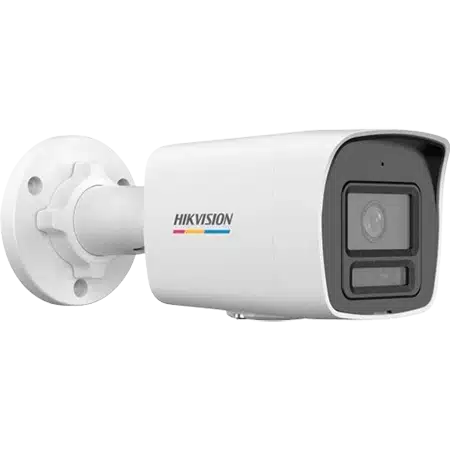

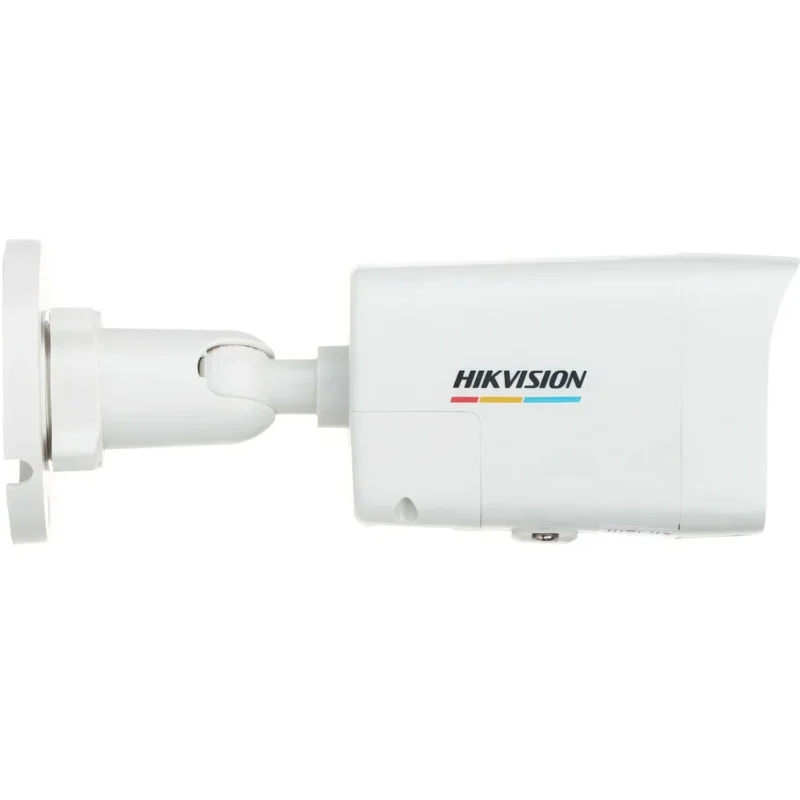

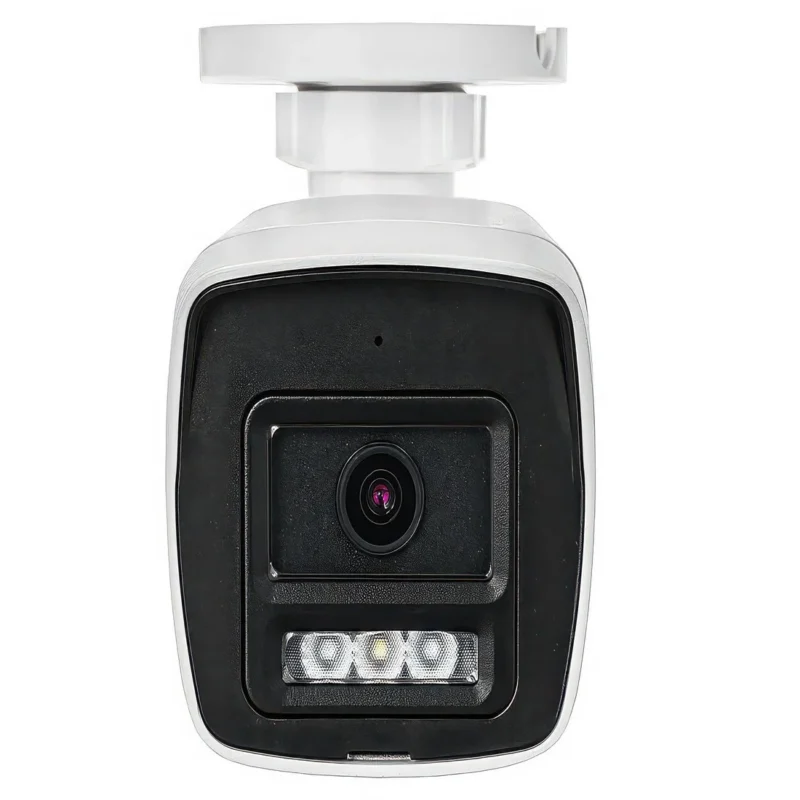

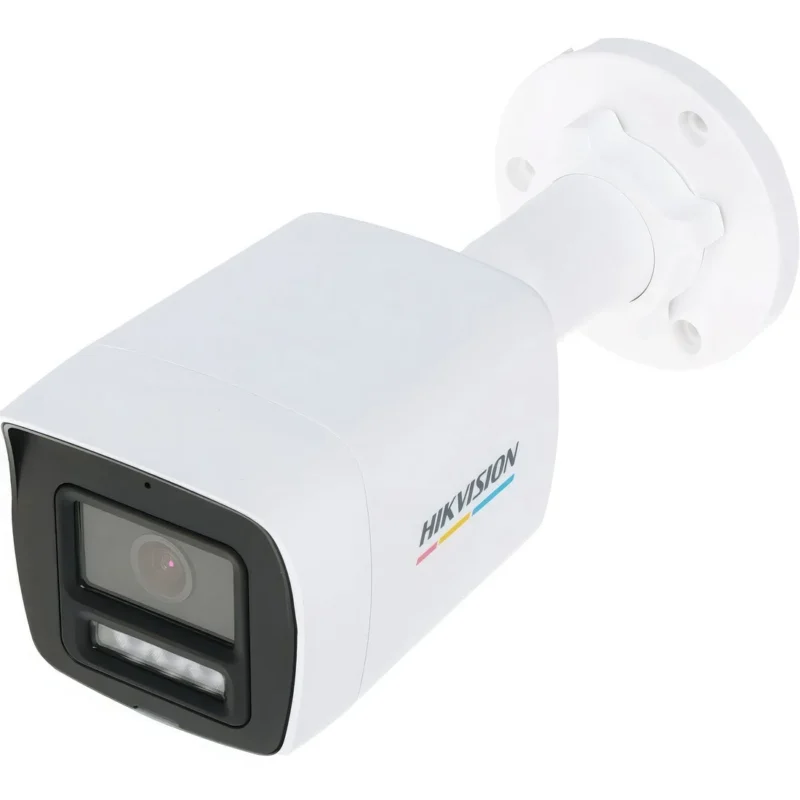

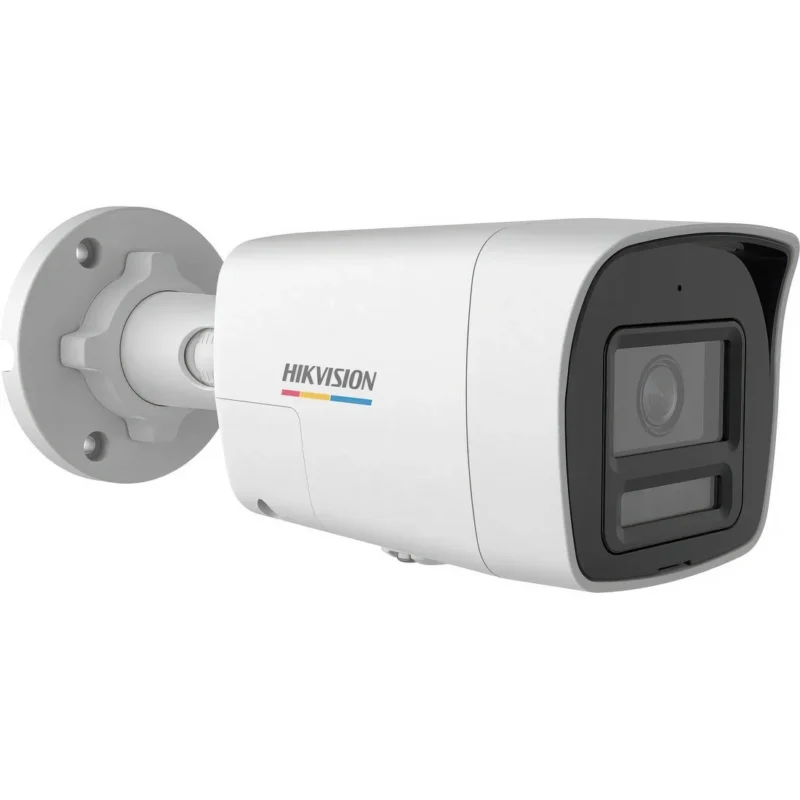

Hikvision DS-2CD1067G2H-LIU 6MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera, Support Human and Vehicle Detection, Smart Hybrid Light, Efficient H.265+, Built-in microphone , 1/2.4″ Progressive Scan CMOS, 3200 × 1800, Color: 0.001 Lux @ (F1.0, AGC ON) , Up to 30m, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720), 120 dB WDR, BLC, HLC, 3D DNR, support alarm triggering by specified target types (human and vehicle), IP67: IEC 60529-2013.

Category:
Camera
Image Sensor 1/2.4″ Progressive Scan CMOS
Max. Resolution 3200 × 1800
Shutter Time 1/3 s to 1/100,000 s
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 4 mm
Focal Length & FOV 4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 110°
Lens Mount M12
Iris Type Fixed
Aperture F1.0
DORI
DORI 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
Illuminator
Supplement Light Type IR, White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)


Sub-Stream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)


Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264,

Sub-stream: H.265 / H.264 / MJPEG


Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Audio Compression G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)
Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host Up to 32 users

3 user levels: administrator, operator, and user
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
Built-in Microphone Yes, 1 built-in microphone
Built-in Speaker Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email, trigger capture
General
Power 12 VDC ± 25%, 0.55 A, max. 6.6 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 8 W
Material Front cover: metal, body: plastic, bracket: plastic
Dimension 69.8 mm × 67.9 mm × 172.9 mm (2.7″ × 2.7″ × 6.8″)
Package Dimension 150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
Weight Approx. 550g
With Package Weight Approx. 800 g (1.8 lb.)
