iDS-7204HUHI-M1X

iDS-7204HUHI-M1X

₨ 8,500

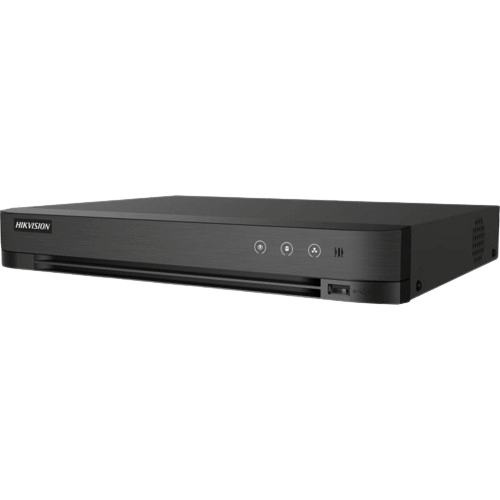

Hikvision iDS-7204HUHI-M1/X 4-ch 5MP H.265 AcuSense DVR, Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm, Efficient H.265 pro+ compression technology, Encoding ability up to 4K @ 8fps(1-ch); 3K/5MP @12fps, 2-ch (up to 6-ch) IP video Input, 2K (2560 × 1440)/60Hz HDMI Output, HDMI/VGA simultaneous output, Total Bandwidth: 96 Mbps, 1 SATA interface (up to 10 TB capacity for each disk), 12 VDC, 1.5 A.

Category:
Facial Recognition
Face Picture Library Up to 16 face picture libraries
Face Picture Comparison Face picture comparison, face picture search;

2-ch face picture comparison alarm (HD analog camera)
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Recording
Video Compression H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution Main stream:

8 MP@8 fps / 5 MP@12 fps / 4 MP@15 fps / 3 MP@18 fps 1080p / 720p / WD1 @25 fps (P)/30 fps (N)

*: 8 MP@8 fps is only available for channel 1. Sub-stream:

WD1 / 4CIF / CIF @ 25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Video and Audio
IP Video Input 2-ch (up to 6-ch)

Up to 8 MP resolution IP enhanced mode on:

4-ch (up to 8-ch), each up to 4 Mbps

Support H.265+ / H.265 / H.264+ / H.264 IP cameras
Analog Video Input 4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output
CVBS Input PAL/NTSC


CVBS Output

 1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous Playback 4-ch
HDTVI Input 8MP (3840 × 2160)@15 fps, 8MP (3840 × 2160)@12 fps, 3K (2960 x 1665)@20 fps, 5MP (2560 × 1944)@20 fps, 5MP (2560 × 1944)@12 fps, 4MP (2560 × 1440)@30 fps, 4MP (2560 × 1440)@25 fps, 3MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@ 25 fps
AHD Input 5MP (2560 × 1944)@20 fps, 5MP (2560 × 1944)@12 fps, 4MP (2560 × 1440)@30 fps, 4MP (2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input 8MP (3840 × 2160) @15 fps, 8MP (3840 × 2160) @12 fps, 5MP (2592 × 1944) @20 fps, 4MP (2560 × 1440) @30 fps, 4MP (2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)，4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network
Total Bandwidth 96 Mbps
Network Protocol TCP/IP,  PPPoE, DHCP,  Hik-Connect, DNS, DDNS, NTP,  SADP,  NFS, iSCSI, UPnP™,  HTTPS, ONVIF
Remote Connection 32
Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface Front panel: 1 × USB 2.0;

Rear panel: 1 × USB 2.0
Alarm In/Out N/A
General
Power Supply 12 VDC, 1.5 A
Consumption ≤ 10 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weight ≤ 1.16 kg (2.6 lb)
