DS-3E0310P-EM

DS-3E0310P-EM

Original price was: ₨ 10,900.Current price is: ₨ 10,499.

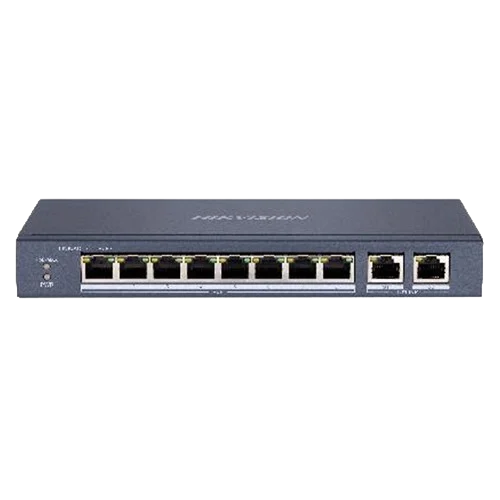

Hikvision L2 Unmanaged Switch, 8 10/100M RJ45 PoE ports, 2 Gigabit RJ45 uplink ports, 802.3af/at, PoE power budget 60W, max. 300m long distance transmission, 6KV surge ,48 VDC, 1.35A

Out of stock

Network Parameters
Port Number 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode Store-and-forward switching
Working mode Standard mode (default), Extend mode
Ports for long-distance transmission Ports 1 to 8
MAC address table 16 K
Switching capacity 5.6 Gbps
Packet forwarding rate 4.1664 Mpps
Internal cache 4 Mbits
Internal cache 768 Kbits
PoE Power Supply
PoE standard Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE port Ports 1 to 8
Max. port power Ports 1 to 8: 30 W
PoE Power Budget 60 W
Dialing function
Long range Ports 1 to 8: up to 300 m.
General
Shell Metal material, fan-free design
Gross weight 1.20 kg (2.65 lb)
Net weight 0.555 kg (1.22 lb)
Dimension (L × H × D) 217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)
Operating temperature -10°C to 40°C (14°F to 104°F)
Storage temperature -40°C to 85 °C -40°F to 185°F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 1.35 A
Power consumption in idle < 5 W
Max. power consumption 65 W
Power source 65 W
