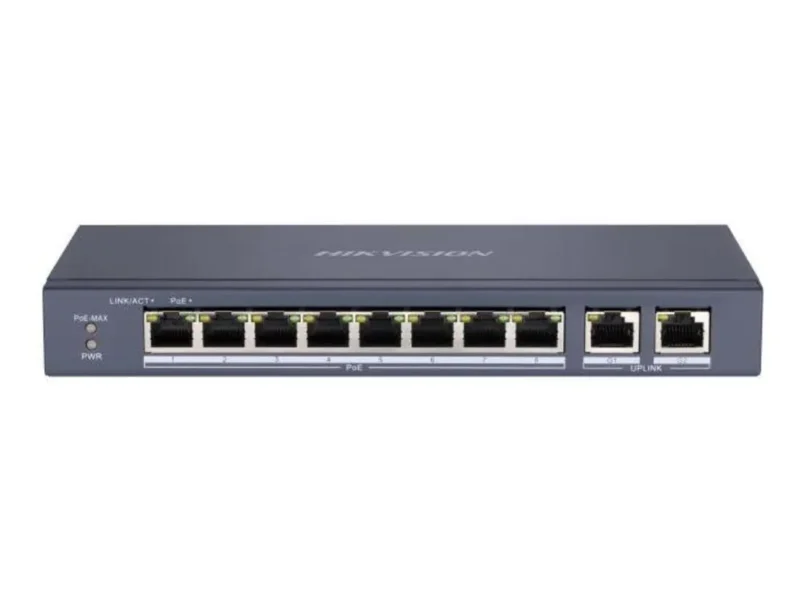

DS-3E0310P-EM

DS-3E0310P-E/M

₨ 11,000

  • 8 × 10/100 Mbps PoE port, and 2 × Gigabit RJ45 port.
  • IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
  • 6 KV surge protection for PoE ports.
  • Up to 300 m long-range transmission.
  • Wire-speed forwarding.
  • Store-and-forward switching.
  • Solid high-strength metal shell.
  • Reliable fan-free design.

General

ShellMetal material

Net Weight0.555 kg (1.22 lb)

Gross Weight1.20 kg (2.65 lb)

Dimensions (W × H × D)217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)

Operating Temperature0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)

Operating Humidity5% to 95% (no condensation)

Relative Humidity5% to 95% (no condensation)

Power Supply48 VDC, 1.35 A

Max. Power Consumption65 W

Power Consumption in Idle5 W

Installation ModeDesk-Mounted,Wall-Mounted

Surge Protection6 KV

Network Parameters

Ports8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port

MAC Address Table8 K

Switching Capacity5.6 Gbps

Packet Forwarding Rate4.17 Mpps

Internal Cache4 Mbits

PoE Power Supply

PoE StandardIEEE 802.3af;IEEE 802.3at

PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE PortPoE: Ports 1 to 8

Max. Port Power30 W

PoE Power Budget60 W

Dialing Function

Long Range

Ports 1 to 8 : up to 300 m.

Long range performance may vary depend on camera model or cable condition.

Approval

EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (201165EU);

WEEE (201219EU);

Reach (Regulation (EC) No.19072006)
