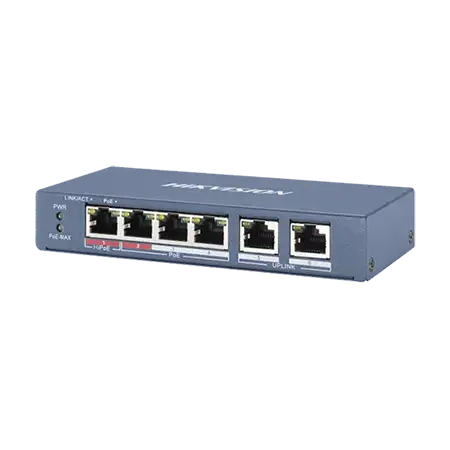

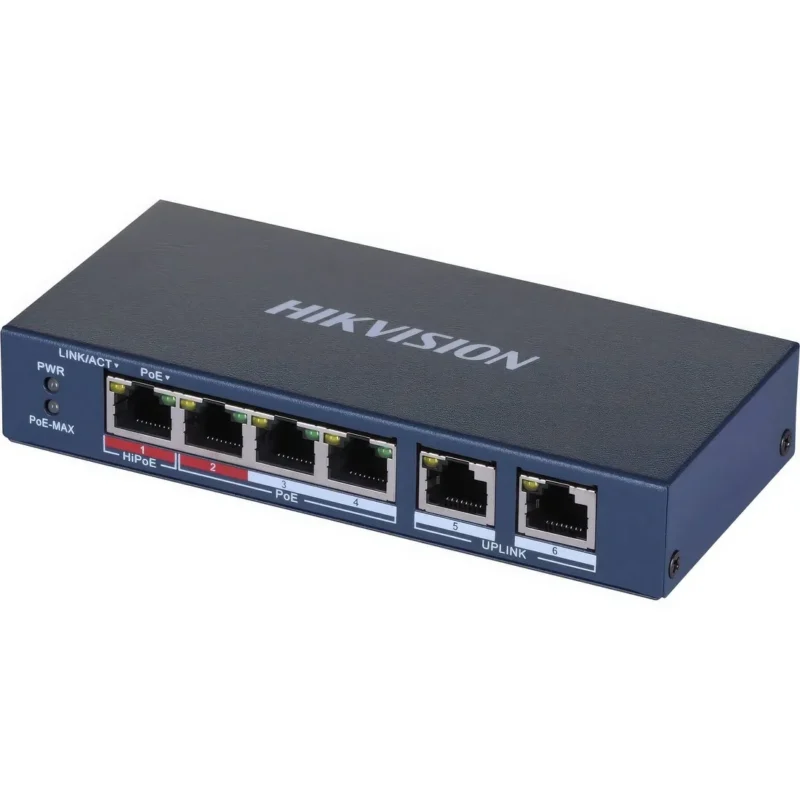

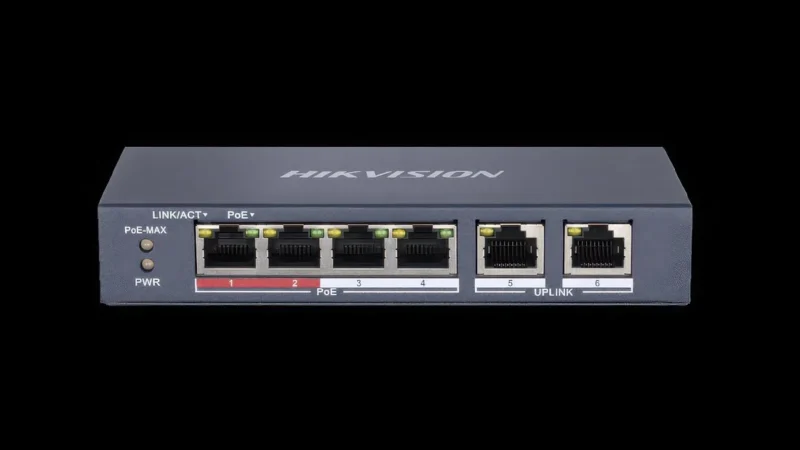

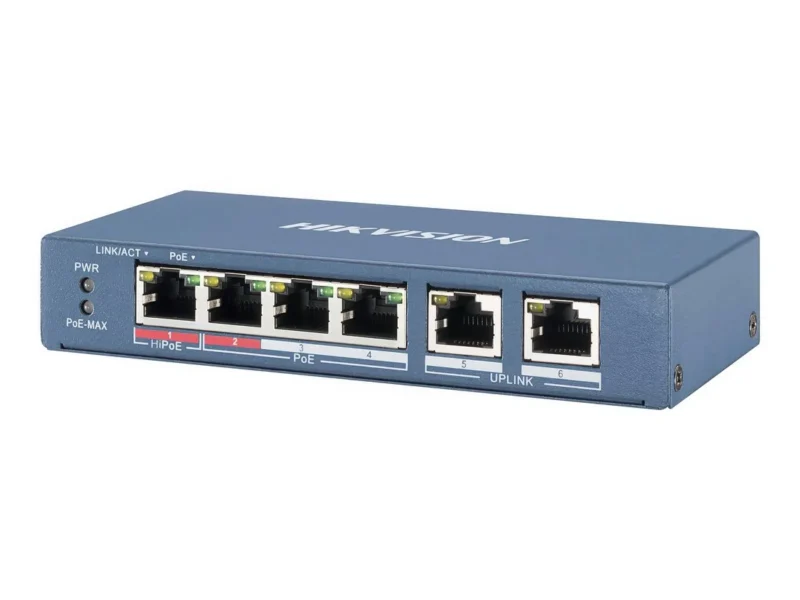

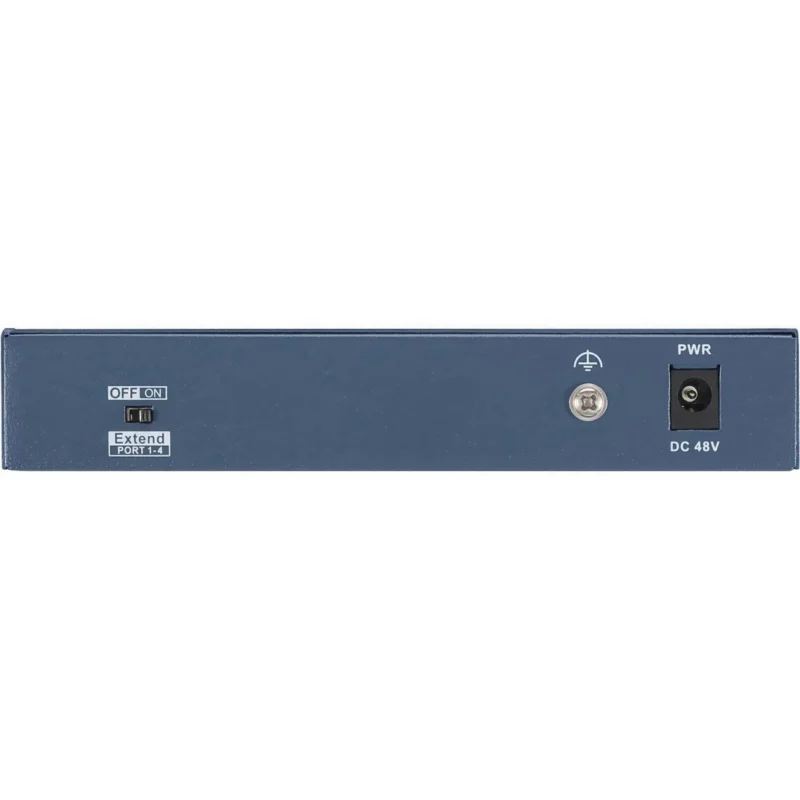

DS-3E0106P-EM Hiksion 6 Port Poe Switch

Hikvision L2 Unmanaged 4-Ports 10/100M RJ45 PoE Switch, 2-Ports 10/100M RJ45 uplink port, 802.3af/at, PoE power budget 35W, max. 300m long distance transmission, 6KV surge protection.

Network Parameters
Port Number	4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
Port Type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode	Store-and-forward switching
Working Mode	Standard mode (default), Extend mode
High Priority Ports	Ports 1 and 2
Ports for long-distance transmission	Ports 1 to 4
MAC address table	4 K
Switching capacity	1.6 Gbps
Packet forwarding rate	0.8928 Mpps
Internal cache	768 Kbits
PoE Power Supply
PoE standard	Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
PoE port	Ports 1 to 4
Max. port power	Ports 1 to 4: 30 W
PoE power budget	35 W
Dialing Function
Long range	Ports 1 to 4: up to 300 m
General
Shell	Metal material, fan-free design
Gross weight	0.52 kg (1.15 lb)
Net weight	0.265 kg (0.58 lb)
Dimension (L × H × D)	145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
Operating temperature	-10°C to 40°C (14°F to 104°F)
Storage temperature	-40°C to 85°C (-40°F to 185°F)
Operating humidity	5% to 95% (no condensation)
Storage humidity	5% to 95% (no condensation)
Power supply	48 VDC, 0.8 A
Power consumption in idle	< 5 W
Max. power consumption	38 W
Power source	38 W
