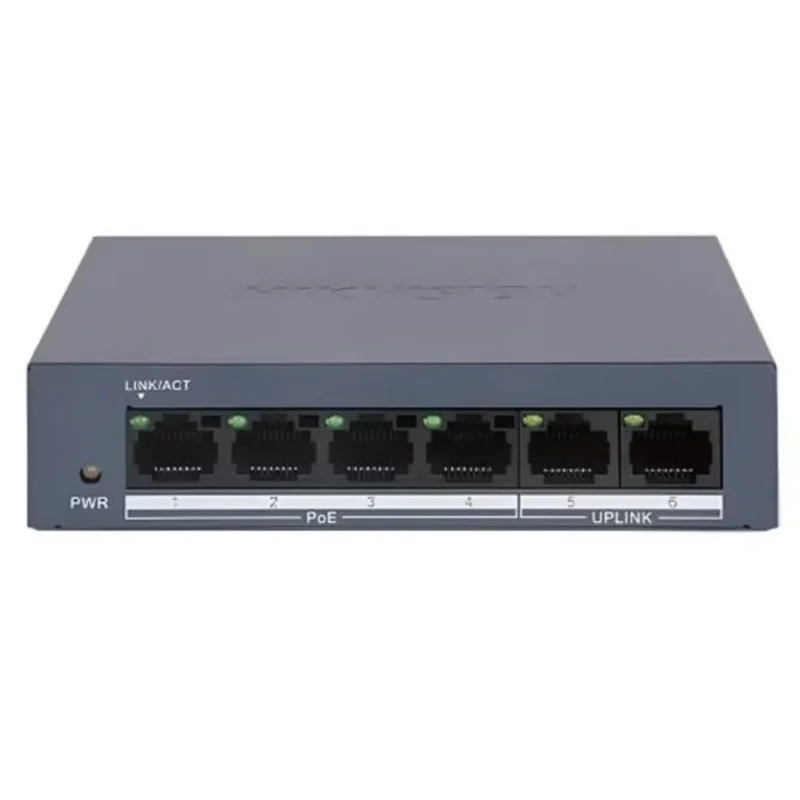

DS-3E0106MP-E/M

General

ShellMetal material, fan-free design

Net Weight0.19 kg (0.42 lb)

Gross Weight0.63 kg (1.39 lb)

Dimensions (W × H × D)121.10 mm × 27.60 mm × 83.10 mm (4.77” × 1.09” × 3.27”)

Operating Temperature0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity5% to 95% (no condensation)

Relative Humidity5% to 95% (no condensation)

Power Supply48VDC, 1.04A

Max. Power Consumption50 W

Power Consumption in Idle1.6 W

Installation ModeDesk-Mounted,Wall-Mounted

Surge Protection2 KV

Network Parameters

Ports4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port

MAC Address Table2 K

Switching Capacity1.2 Gbps

Packet Forwarding Rate0.89 Mpps

Internal Cache768 Kbits

PoE Power Supply

PoE Power PinEnd-span: 1/2(-), 3/6(+)

PoE PortPoE: Ports 1 to 4

PoE Power Budget45 W

Approval

EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
