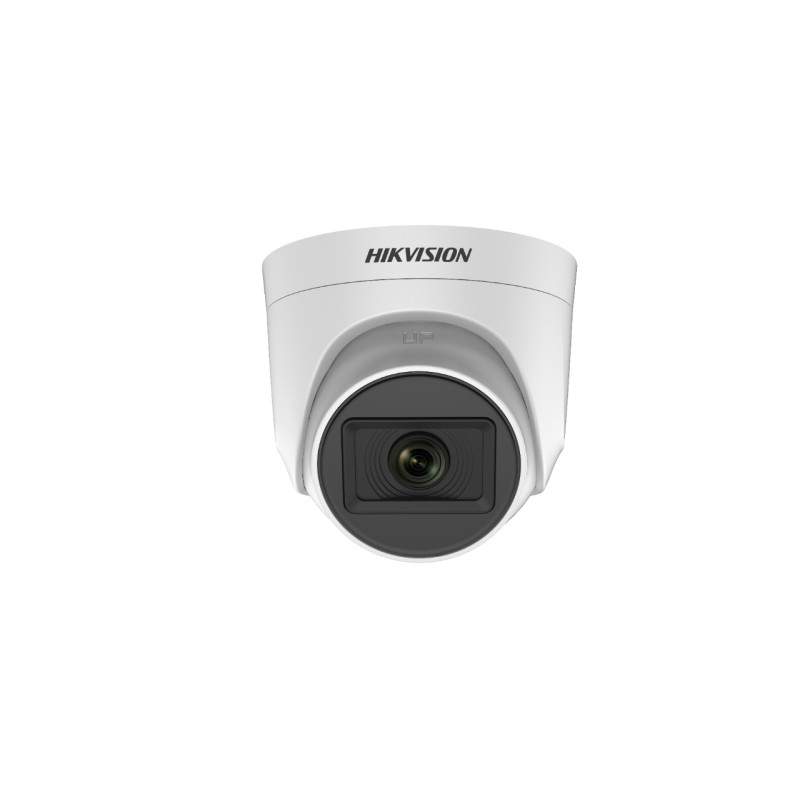

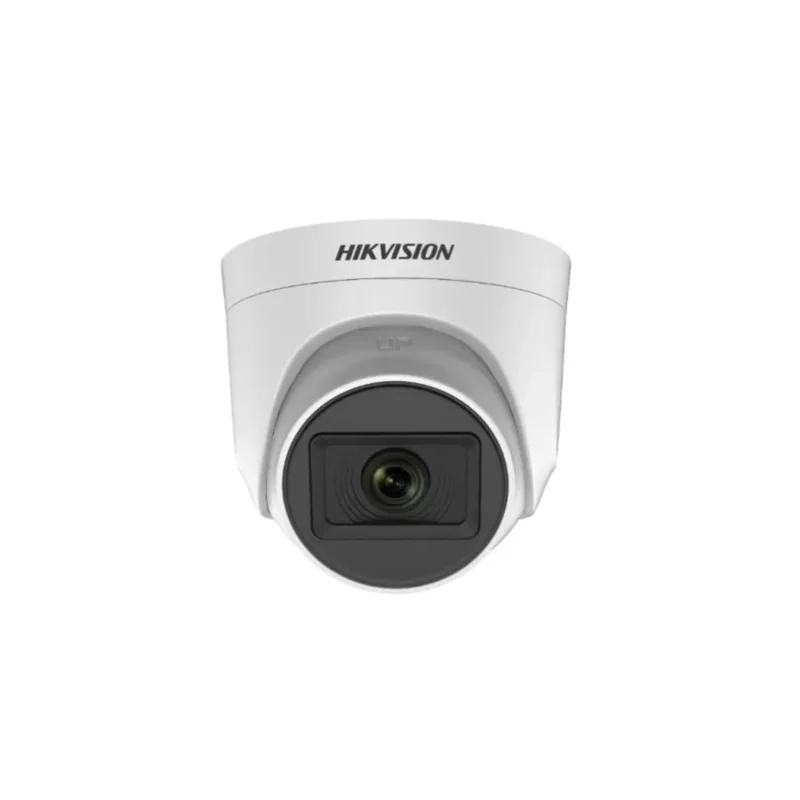

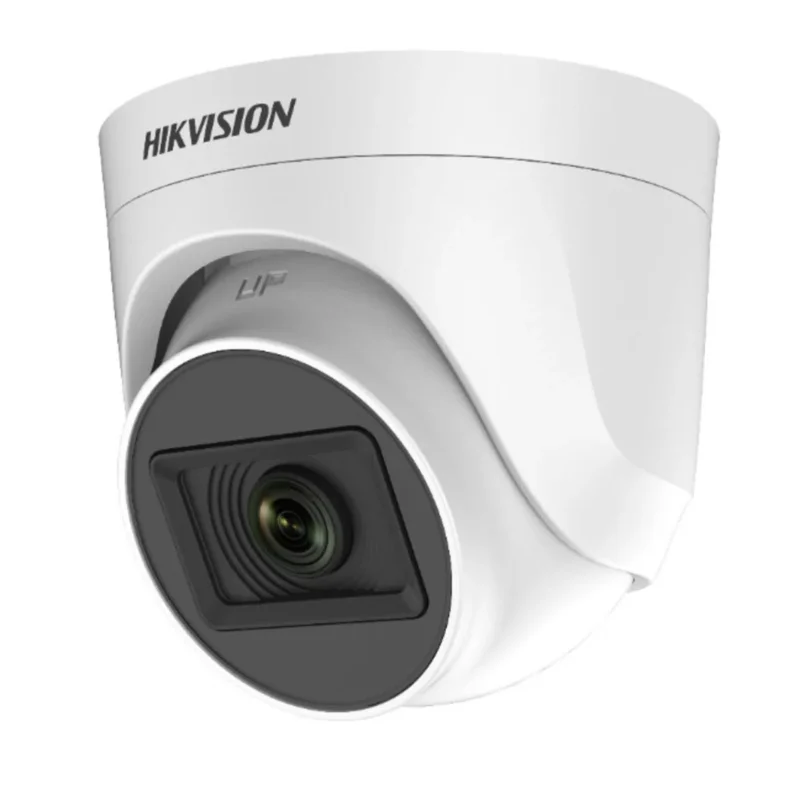

DS-2CE76H0T-ITPF

Resolution

5MP (2560 × 1944 Resolution) Audio Fixed Turret Turbo HD Camera

IR Range

 Smart IR, up to 20m IR distance

Built-in Mic

Audio over Coaxial Cable, Built-in Mic

Frame Rate

TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 4MP@30fps, 4MP@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

Smart Features

DWDR/BLC/HLC/Global, 2D DNR, AGC, Day & Night Mode

Video Output Mode

4 in 1 Video Output (Switchable TVI/AHD/CVI/CVBS)

Function

Brightness, Sharpness, Mirror, Smart IR

Field Of View

Horizontal FOV: 85.5°

Vertical FOV:  63.7°

Diagonal FOV: 110.7°

Camera
Image Sensor	5 MP CMOS
Signal System	PAL / NTSC
Resolution	2560 (H) × 1944 (V)
Frame Rate	TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL / NTSC
Min. illumination	0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1 / 25 s to 1 / 50, 000 s NTSC: 1 / 30 s to 1 / 50, 000 s
Lens	2.8 mm
Field of View	Horizontal FOV: 85.5°, Vertical FOV: 63.7°, Diagonal FOV: 110.7°
Lens Mount	M12
Day & Night	ICR
WDR (Wide Dynamic Range)	Digital WDR
Audio	Built-in mic
Angle Adjustment	Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
Image Mode	STD / HIGH-SAT
AGC	Yes
Day / Night Mode	Auto / Color / BW (Black and White)
White Balance	Auto / Manual
AE (Auto Exposure) Mode	DWDR / BLC / HLC / Global
Noise Reduction	2D DNR
Language	English
Function	Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output	Switchable TVI / AHD / CVI / CVBS
General
Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply	12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption	Max. 3.7 W
Material	Plastic
IR Range	Up to 20 m
Communication	HIKVISION-C
Dimensions	Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
Weight	Approx. 140.5 g (0.31 lb.)
