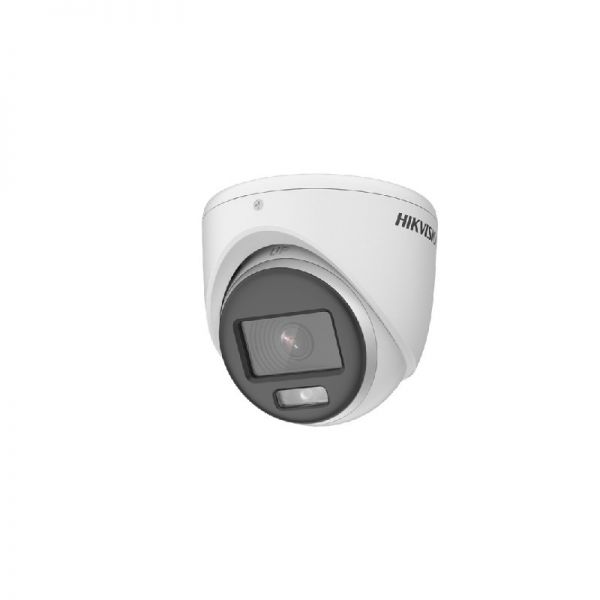

DS-2CE70DF0T-PF

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal SystemPAL/NTSC
• Light AlarmSolid Light Alarm (White Light)

Lens

• Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

  3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

  6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

• Lens  MountM12

• Illuminator
• Supplement Light Type White Light
• Supplement Light Range Up to 20 m
• Smart Supplement Light Yes

• Image
• Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
• Image Settings Brightness; Mirror; Sharpness; Anti-Banding

Frame Rate

TVI: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVBS: PAL/NTSC

• Day/Night Mode Color
• Wide Dynamic Range (WDR)Digital WDR
• Image Enhancement DWDR; BLC; HLC; Global
• Noise Reduction3D DNR/2D DNR
• White Balance Auto/Manual
• White Light Auto/Off
• AGC Yes

Interface

• Video Output  switchable TVI/AHD/CVI/CVBS

General

• Material Plastic
• DimensionΦ 85.02 mm × 81.25 mm (Φ 3.35″ × 3.2″)
• Approx. 161 g (0.36 lb)
• Operating Condition-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
• Communication  HIKVISION-C

Language

• English

Power Supply

12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

• Consumption Max. 2.4 W
