DS-2CD2T87G2-LSUSL 4mm

DS-2CD2T87G2-LSUSL 4mm

₨ 2,100

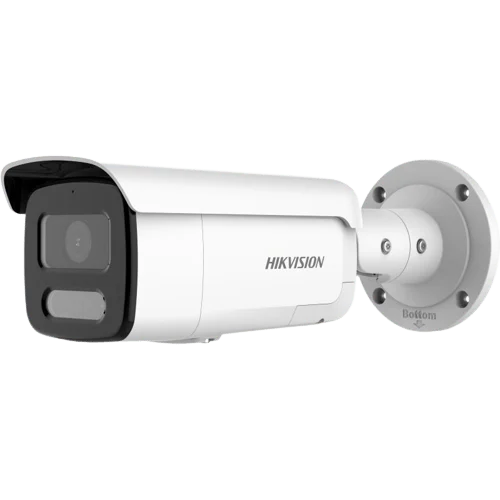

Hikvision DS-2CD2T87G2-LSU/SL 8MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera, 1/1.2″ Progressive Scan CMOS, 24/7 colorful imaging, Focus on human and vehicle targets classification based on deep learning, Built-in two-way audio for audio warning, White Light Supplement Light Range: 60m, 130 dB WDR, BLC, HLC, 3D DNR, Built-in memory card slot, Face Capture, IP67.

Category:
Camera
Image Sensor 1/1.2″ Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day & Night 24/7 color imaging
Lens
Lens Type Fixed focal lens, 4mm
Focal Length & FOV 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
Iris Type Fixed
Lens Mount M mount
Aperture F1.0
Depth of Field 4 mm: 7 m to ∞
DORI
DORI 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
Illuminator
Supplement Light Type White Light
Supplement Light Range 60 m
Smart Supplement Light Yes
Video
Main Stream 50 Hz:

25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

24 fps (3840 × 2160)

30 fps (3200 x 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265 / H.264 / H.264+ / H.265+

Sub-stream: H.265 / H.264

Third stream: H.265 / H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) Yes
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Image Parameters Switch Yes
Image Settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 regions of privacy mask
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD / microSDHC / microSDXC/TF card, up to 512GB
Reset Key Yes
Built-in Microphone Yes
Built-in Speaker 2 W, 10 cm: 97 dB
Audio 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium

1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
Linkage Upload to NAS / memory card / FTP, notify surveillance center, trigger record, trigger capture, send email
Deep Learning Function
Face Capture Yes
General
Power 12 VDC ± 25%, 0.84 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.21 A
Material Front cover: metal, body: metal, bracket: metal
Dimension 289.9 mm × 93.5 mm × 91.2 mm (11.4″ × 3.7″ × 3.6″)
Package Dimension 386 × 156 × 155 mm (15.2″ × 6.1″ × 6.1″)
Weight Approx. 1255 g (2.6 lb.)
With Package Weight Approx. 1769 g (3.7 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Approval
EMC FCC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN

50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)

KC (KN32: 2015, KN35: 2015)
Safety UL (UL 62368-1);

CB (IEC 62368-1:2014+A11)

CE-LVD (EN 62368-1:2014/A11:2017)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
