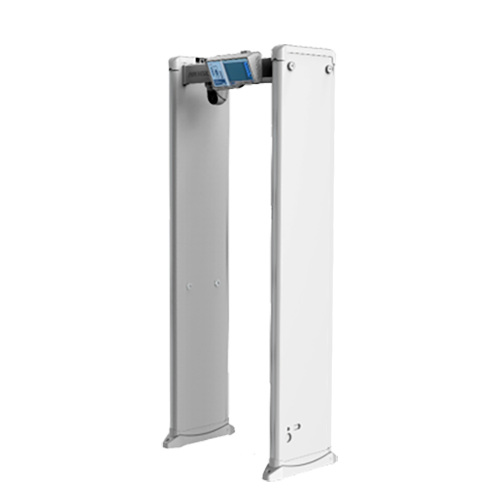

Name: ISD-SMG318LT-F - Lark Solutions
Availability: OutOfStock

Thermal Imaging
Sensor	Vanadium oxide uncooled sensor
Max. Resolution	160× 120
Pixel Interval	17μm
Response Waveband	8 to 14μm
NETD	≤ 40mk (@25°C,F#=1.0)
Lens (Focal Length)	3mm
MRAD	9.44
Field of View	50°×37.2°
Min. Focusing Distance	0.5m
Aperture	1.1
Pseudo Color	15, white heat, black heat,fusion1, rainbow, fusion2, iron oxide red1, iron oxide red2, puce, color1, color2, ice & fire, rain, red heat, green heat, and dark blue
Visible Light
Sensor	4 MP 1/2.7″ Progressive Scan CMOS
Resolution	2688×1520@25fps
Min. illuminance	0.0018Lux @ (F1.6,AGC ON) ,0 Lux with IR
Shutter speed	1/3s to 1/100,000s
Focal length	4mm
Field angle	84.0°×44.8°
Day/Night switch	ICR
WDR range	120dB
IR distance	Max. 15 m
Image frame
Thermal imaging and visible light	Thermal imaging integrated with visible light frame
Picture in picture	Supports visible light and thermal imaging frame over lay
Smart information overlay	Supports (only temperature measurement rule and temperature are supported)
Smart function
Linkage alarm	Linkage of strobe light and audible alarm
Temperature measurement
Temperature exception detection	Expert mode: 10 pints, 10 frame, 21 rules on each line
Body temperature measurement	AI face detection, multi-target detection
Measurement range	30 to 45℃
Temperature Alarm	Alarm triggered when the temperature is over the threshold
Measurement accuracy	No black body: ±0.5℃ With black body: ±0.3℃
Compression
Video compression	H.265 / H.264 / MJPEG
H265:	Main Profile
H264:	Baseline Profile / Main Profile / High Profile
Video bit rate	32 Kbps to 8Mbps
Video standard	G.711 / G.722.1 / G.726 / MP2L2 / PCM
Audio bit rate	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
Storage
SD card storage	Micro SD / Micro SDHC / Micro SDXC card (128GB or 256GB)
NVR storage	(96/86/77/76) I series NVR Supports live view / playback, rule display, alarm report, and remote configuration
Network
Main stream	Visible light: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) Visible light: 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) Thermal Imaging: 25fps (160 × 120 (output320 × 240))
Sub stream	Visible light: 50Hz: 25fps (704 × 576), 25fps (640 × 480) Visible light: 60Hz: 30fps (704 × 480), 30fps (640 × 480) Thermal Imaging: 25fps (160 × 120 (output 320 × 240))
Network protocol	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Interface protocol	ONVIF(PROFILE S, PROFILE G), ISAPI, SDK, Ehome, GB28181
Max. live view channel number	20
User	Three level: administrator, operator, general user
Safety strategy	User and password authentication, HTTPS encryption, IEEE 802.1x control, IP address filtering
Interface
Alarm input	1, 0 to 5 V alarm input
Alarm output	1, NO relay output, alarm type configurable
Audio input	1, 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p]
Audio output	1, 600Ω
Reset button	1
Network interface	1,RJ45 10/100M self-adaption
RS-485 interface	1
SD card slot	1
Client	iVMS-4200 / HIK-CONNCET
General
Power supply	110~240VAC，50-60Hz
Consumption	<72W
Operation temperature and humidity	Speed dome: 5℃ to 40℃, ＜95% RH Walk-through detector: -20℃ to 85℃, 99%, RH
Protective level	Dome camera: IP66 Walk-through detector: IP53
Dimension
Detector dimension(without dome camera)	2200 x 850 x 480mm (H x W x D)
Dome camera dimension	138.3 mm × 138.3 mm × 123.1 mm(H x W x D)
Package dimension	2270 x 700 x230mm(H x W x D)
Weight
Net weight	About 50Kg
