DS-3E0326P-E

DS-3E0326P-E

₨ 14,000

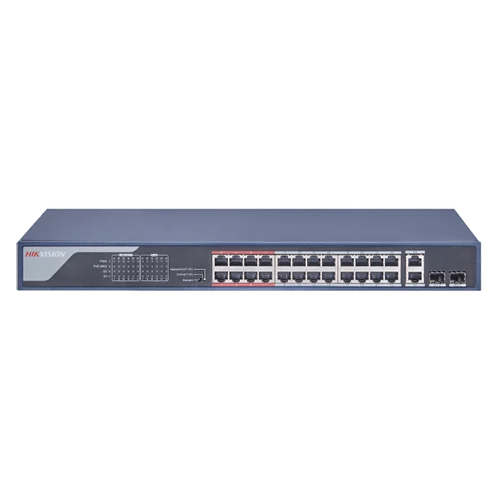

Hikvision L2, Unmanaged, 24 10/100M RJ45 PoE ports, 2 × 1000 Mbps combos, 802.3af/at, PoE power budget 225W, “Extend” Mode: ports 17-24 250m, 100 to 240 VAC, 50/60 Hz

Category:
Network Parameters
Port Number 24 × 100 Mbps PoE ports, 2 × 1000 Mbps combos
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority ports Ports 1 to 8
Ports for long-distance transmission Ports 17 to 24
Link aggregation port G1 to G2
MAC address table 4 K
Switching capacity 8.8 Gbps
Packet forwarding rate 6.547 Mpps
Internal cache 2.75 Mbits
Poe Power Supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
Ports for close-range transmission (1-16) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply
PoE port Ports 1 to 24
Max. port power 30 W
PoE power budget 370 W
Max. power consumption 400 W
General
Shell Metal material
Gross weight 3.62 kg (7.98 lb)
Net weight 2.75 kg (6.06 lb)
Dimension (L × H × D) 440 mm × 44 mm × 220.8 mm (17.3” × 1.73” × 8.7”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 100 to 240 VAC, 50/60 Hz, Max. 6.5 A
Power consumption in idle 30 W
