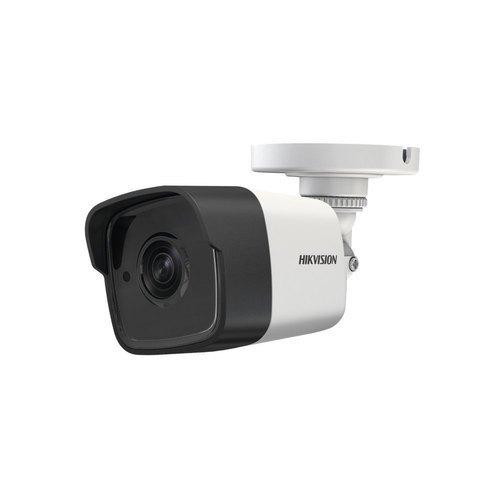

DS-2CE16H0T-ITPFS

Camera

• Image Sensor 5 MP CMOS
• Max. Resolution2560 (H) × 1944 (V)
• Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & Night ICR
• Angle Adjustment Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355°
• Signal System PAL/NTSC

Lens

• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 85.5°,vertical FOV: 63.7°, diagonal FOV: 110.7°

  3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°

  6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°

• Lens MountM12


• Image Settings Brightness, Sharpness, Mirror, Smart IR

Frame Rate

TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

CVI: 4MP@30fps, 4MP@25fps

AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

CVBS: PAL/NTSC

• Day/Night Mode Auto/Color/BW (Black and White)
• Image Enhancement BLC
• White Balance ATW/MANUAL
• AGC Support

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS
• General
• Material Plastic
• Dimension 58 mm × 61 mm × 158.6 mm (2.28″ × 2.40″ × 6.42″)
• Approx. 160 g (0.35 lb.)
• Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• Communication  HIKVISION-C
• Language  English
• Power Supply    12 VDC ± 25%

  You are recommended to use one power adapter to supply the power for one camera.

• Consumption

  Max. 3.7 W

• IR Range Up to 25 m

Approval

• Protection IP67
