DS-2CD2347G2-LSUSL 2.8mm

DS-2CD2347G2-LSUSL 2.8mm

₨ 5,200

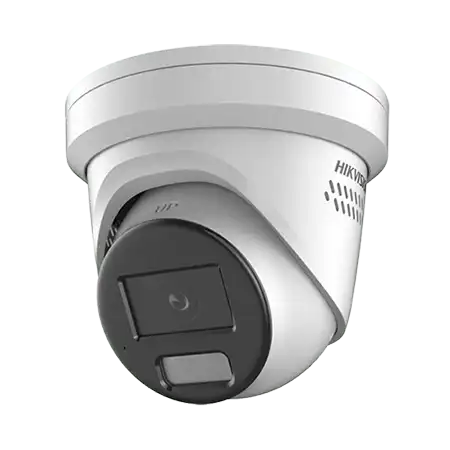

Hikvision DS-2CD2347G2-LSU/SL 4MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera, Focus on human and vehicle targets classification based on deep learning, 24/7 colorful imaging, Active strobe light and audio alarm, White light: Supplement Light Range Up to 30m, 130dB WDR, SNR: ≥ 52 dB, BLC, HLC, 3D DNR, Built-in Microphone, Built-in memory card slot, Face Capture, 12 VDC & PoE, Water and dust resistant (IP67).

Category:
Camera
Image Sensor 1/1.8″ Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length & FOV 2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°
Lens Mount M16
Iris Type Fixed
Aperture F1.0
Depth of Field 2.8 mm: 3.1 m to ∞
DORI
DORI 2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m
Illuminator
Supplement Light Type White light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Video Compression Main stream: H.265 / H.264 / H.265+ / H.264+

Sub-stream: H.265 / H.264

Third stream: H.265 / H.264

*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 and H.264 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Compression G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
Built-in Microphone Yes
Built-in Speaker 1.2 W, 10 cm: 95 dB
Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output

impedance: 100 Ω, interface type: non-equilibrium
Alarm Visual alarm

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes
Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm,

exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))

Scene change detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger

capture, send email, strobe light, audible warning, trigger alarm output
Deep Learning Function
Face Capture Yes
General
Power 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
Dimension Ø138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)
Package Dimension 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
Weight Approx. 760 g (1.7 lb.)
With Package Weight Approx. 1040 g (2.3 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating

Conditions

 -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel

counter
Approval
EMC FCC SDoC: 47 CFR Part 15, Subpart B;

CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;

RCM: AS/NZS CISPR 32: 2015;

IC VoC: ICES-003: Issue 6, 2016;

KC: KN 32: 2015, KN 35: 2015
Safety UL: UL 60950-1;

CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

LOA: IEC/EN 60950-1
Environment CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU;

Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
